US Patent US12090919B2
CA Patent CA3204531A1
FMVSS 108 Compliant
Engineered to Protect. Built to Last.
CrossGuard Extended Stop Arm — a patented, impact-resistant safety device for school buses that provides a physical and visual deterrent to discourage drivers from illegally passing stopped buses.
⛉ Why It Matters
Protecting Students Where It Matters Most
Every day in the United States, thousands of drivers illegally pass stopped school buses. These violations occur during the most vulnerable time in the school transportation process — at the very moment students are entering or leaving the bus.
CrossGuard™ enhances the visibility and extends the safety zone of the stopped bus into the traffic lane, helping approaching drivers recognize the need to stop. CrossGuard™ reinforces the safety perimeter around the loading area.
130K+
Illegal passes per day nationwide
17M+
Stop-arm violations per school year
The Loading Zone
Remains one of the most dangerous areas for students according to NHTSA data
3 sec
Deploy Time
6.5 ft
Reach
5 yr
Warranty
IP66
Weather Rating
9–36V DC
Wide Supply Voltage
Product Overview
How CrossGuard Works

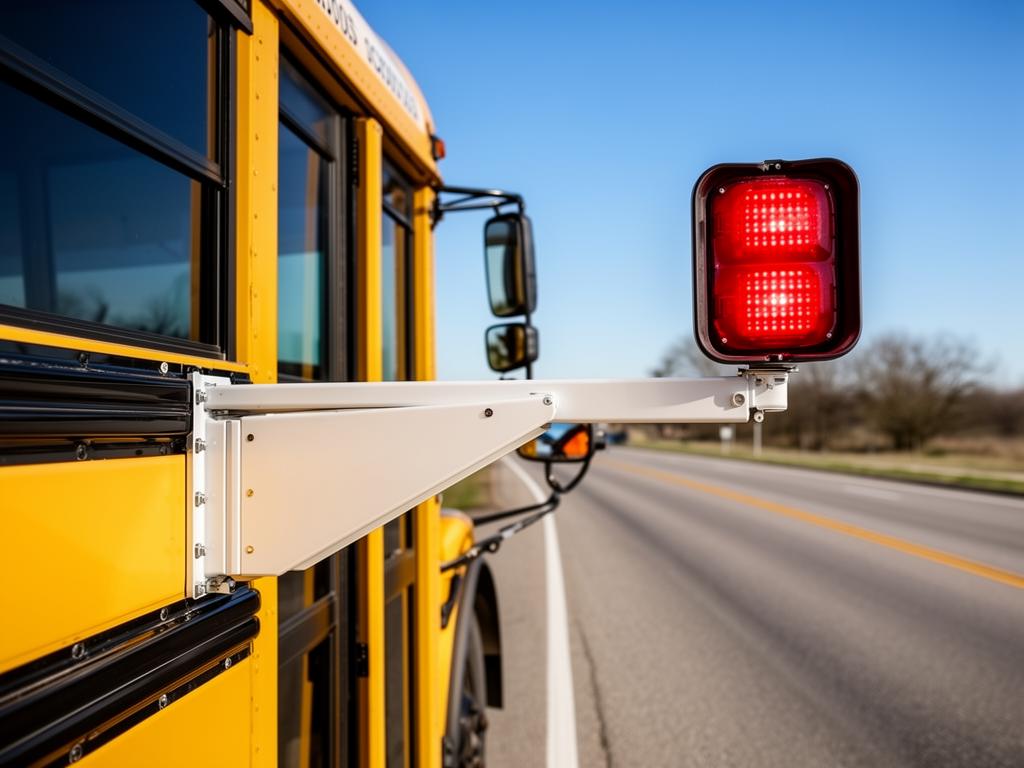

The CrossGuard Extended Stop Arm extends outward to create a prominent physical and visual deterrent, discouraging vehicles from illegally passing stopped school buses. Engineered for durability, the arm is designed to withstand impact from vehicles traveling at significant speed and remain attached if struck. CrossGuard reduces the risk of component detachment.
The resilient design is patented under US12090919B2 and CA3204531A1 and requires no scheduled maintenance.
With a rapid 3-second deployment and retraction time, CrossGuard is easy for bus drivers to use in real-world conditions—extending quickly when needed and clearing just as efficiently.
Operations Sequence
Driver triggers deployment switch as bus stops
Alternating lights on Stop Sign and Light Bar activate
Arm deploys to 90° within 3 seconds — extends 6.5ft from bus
Adjacent lane has visual and audio warning to deter illegal passing
Driver triggers retract — arm returns and locks in 3 seconds
Lights remain active 2 seconds after retracting
Core Features
Built for the Real World
Impact Resistant
Withstands 400lb vertical static load at arm end. Will not detach if struck at significant speed.
Vandal Proof
No exposed wires or hardware. Concealed wiring throughout. Weatherproof sealed connector.
LED Light System
Circular lights contain 28 high-intensity LEDs per side in a sealed housing. FMVSS 108 compliant.. Light bar
Zero Maintenance
Sealed bearings, no lubrication needed. Structural fiberglass gate with stainless steel fasteners.
Impact Resistant
Automatically retracts and resets after 10 seconds. Manual stow override available.
Multiple Lengths
Available up to 8ft total. Standard extends 6.5ft. Shorter version available for single-lane routes.
Materials & Design
Premium Materials, Purposeful Design
Construction
— Custom-designed structural fiberglass gate/light bar
— Purpose-built power unit with brushless motor
— All exposed fasteners are stainless steel
— No exposed electrical wiring
— Weatherproof rubber encapsulated LED strips
Safety Design
— No pinch points — safe around children
— Cannot become a projectile — will not detach on impact
— Hinges toward bus on impact, contacts rubber bumper
— Internal lock mechanism holds arm securely when stowed
— DOT Compliant sign lettering and reflectivity
Why CrossGuard
Purpose-Built for Every Stakeholder
For Manufacturers
- Wide supply voltage range: 9–36V DC fits any bus platform
- LIN Automotive bus communication
- Custom protocols available on request
- 4-bolt concealed mounting
- Programmable light patterns
For Transportation Directors
- Zero scheduled maintenance
- 5-year warranty included
- Auto-reset after impact
- IP66 all-weather operation
- Can be stowed manually
For Parents
- Increased visibility helps alert approaching drivers sooner
- Extends the safety zone around the bus during loading and unloading
- Designed to remain intact if struck, reducing potential hazards
- Adds an extra layer of protection for children outside the bus

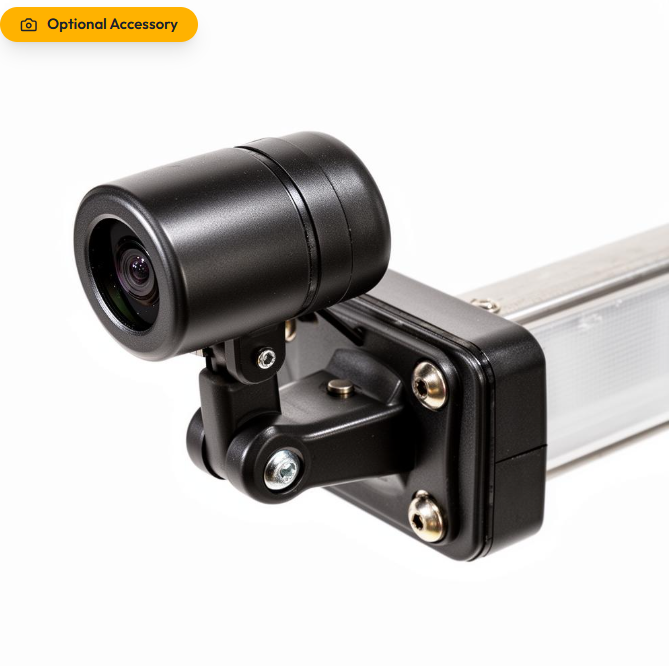

Camera Module
Record and monitor stop arm deployment events — critical evidence for enforcement and fleet analysis.
- Impact event tagging
- Fleet analysis tools
- Fleet analysis tools
- Violation documentation
- Get Started
Ready to Integrate CrossGuard?
Contact us for detailed specifications, integration support, and manufacturer pricing.
